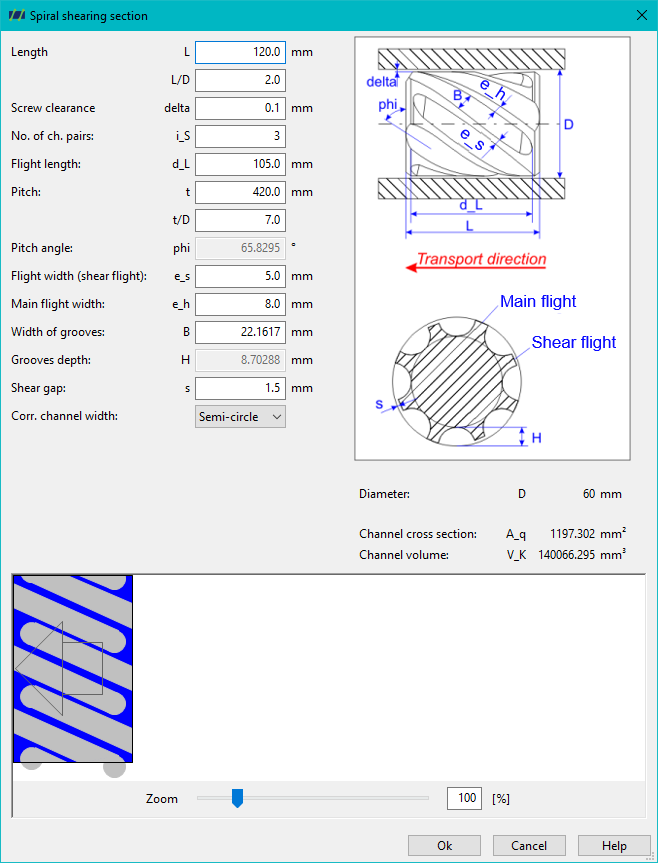

A spiral shear section is entered in the same way as a maddock shear section. In addition to the input data for the Maddock shear section, the pitch of the grooves must be entered for the helical shear section. The corresponding pitch angle is calculated. Also the length of the shear flight must be entered.
