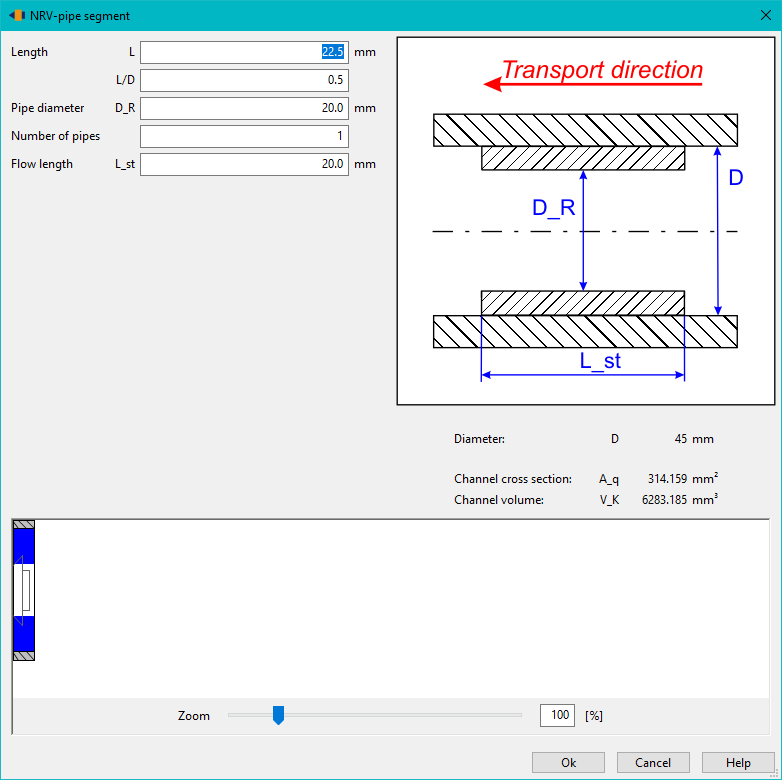

The cylindrical and conical NRV element, the ring and the pipe segment are auxiliary geometries in order to be able to map the pressure loss of a non-return valve with the simplest possible input parameters.

As with the ring segment, all values can also be freely edited here. The flow length can exceed the total length of the element.
