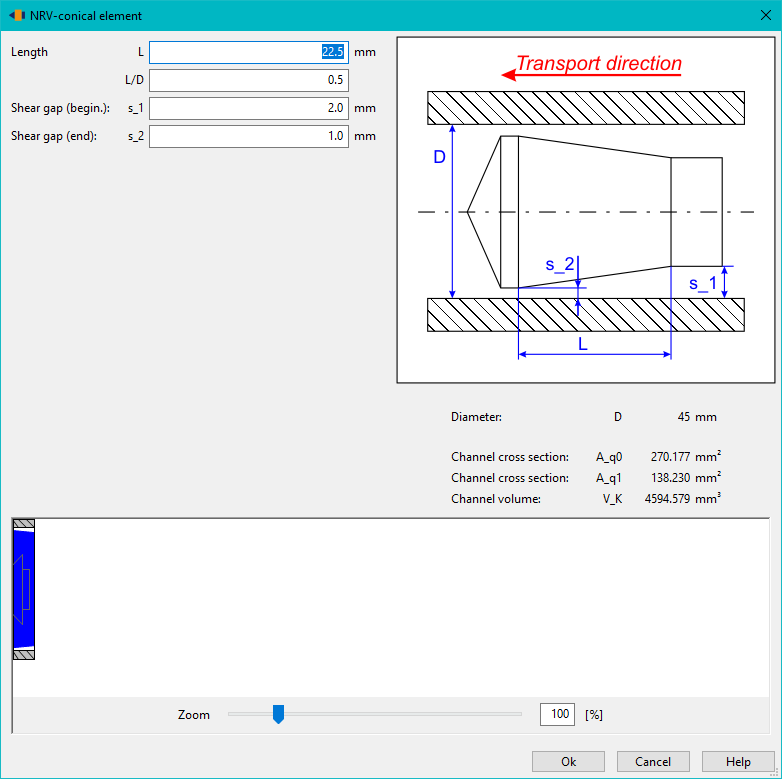

The cylindrical and conical NRV element, the ring and the pipe segment are auxiliary geometries in order to be able to map the pressure loss of a non-return valve with the simplest possible input parameters.

These two parts correspond to the respective shearing elements; the input is analogue.
